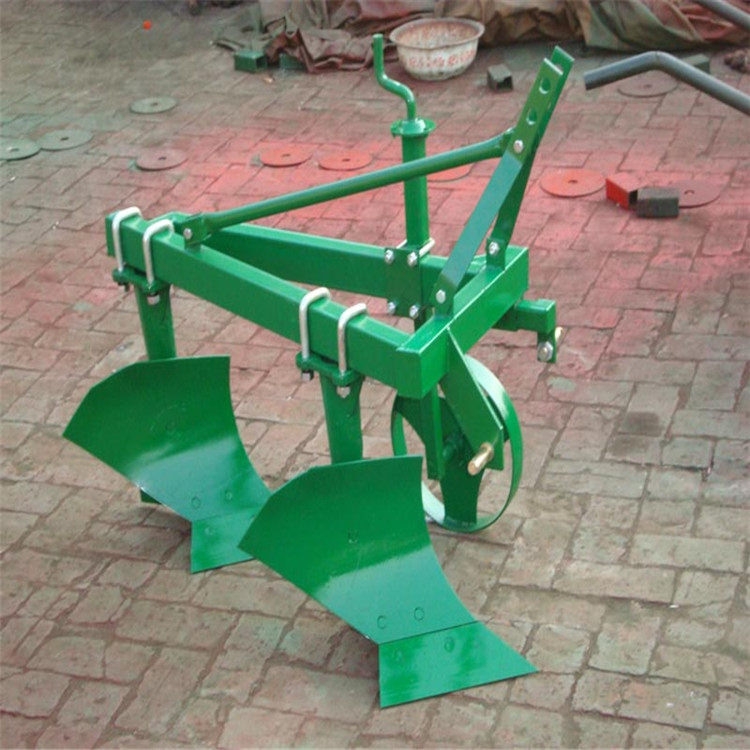

1L系列铧式犁为全悬挂式铧式犁，适用于壤土、沙壤土地区熟地旱田耕作。它具有结构简单，耕作适应范围较大，作业质量好，地表平整，碎土覆性能好，墒沟小等特点。
The machine is suitable for loam, or sandy loam soils in the cultivated area. it is compact in construction, and versatile in application . After plowing, the land surface is smooth and the furrow is narrow with a good pulverization and mulching.
主要参数：Main Specifications
|
型号Model |
1L-220 |
1L-320 |
1L-420 |
1L-520 |
1L-225 |
1L-325 |
1L-425 |
1L-525 |
|
犁体个数Nos of share |
2 |
3 |
4 |
5 |
2 |
3 |
4 |
5 |
|
单体幅宽（mm）Width of share |
200 |
200 |
200 |
200 |
250 |
250 |
250 |
250 |
|
耕幅(m) Working width |
0．4 |
0．6 |
0．8 |
1 |
0.5 |
0.75 |
1.0 |
1.25 |
|
耕深(mm) Working depth |
200~250 |
200~250 |
200~250 |
200~250 |
200~250 |
200~250 |
200~250 |
200~250 |
|
整机重量(kg) Weight |
64 |
100 |
130 |
170 |
125 |
228 |
330 |
435 |
|
配套动力(hp) Fitted power |
12-24 |
25~30 |
30 |
50 |
25 |
35 |
50 |
65 |
|
挂接形式Linkage |
三点悬挂(Standard three-point mounted) |
|||||||
