Specifications

Units

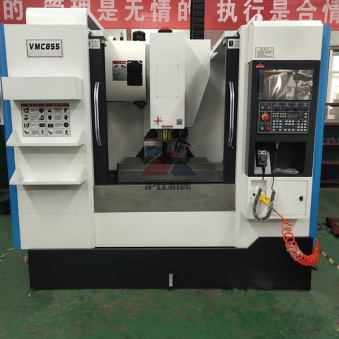

VMC850

工作台尺寸Table size

mm

1000x500

X轴行程X axis travel

mm

800

Y轴行程Y axis travel

mm

500

Z轴行程Z axis travel

mm

500

工作台最大承重Max. worktable load

kg

500

T型槽（数量-宽度-间隙）

T slot(number-width-pitch)

5-18x100

主轴转速Max. spindle speed

rpm

8000(Optional:10000 )

主轴锥度Spindle taper

mm

BT40

主电机功率Main motor power

kw

7.5/11

X/Y/Z轴快移速度

X/Y/Z rapid traverse speed

m/min

24/24/20

(Optional:48/48/36 )

切削进给速度Cutting feed speed

mm/min

1-8000

导轨形式Guide rail type

Linear rail

主轴中心到立柱表面距离

Distance from spindle axis to column surface

mm

525

主轴端部到工作台表面距离

Distance between spindle nose and worktable surface

mm

130-630

定位精度Positioning accuracy

mm

±0.0075

重复定位精度Repeat positioning accuracy

mm

±0.005

刀库Tool magazine

Arm 24

刀具最大直径Max. tool diameter

mm

φ78 (Adjacent)/ φ120(Apart)

刀具最大重量Max.tool weight

kg

8

机床重量Machine weight

kg

5600

外形尺寸Overall dimension

mm

2600X2300X2800
