QD-18-II型袋泡茶内外袋挂线挂标包装机一、适用于：

茶叶、咖啡、中草药、植物等过滤性物品QD-18-11钦典茶叶包装机 天山绿茶袋中袋茶叶包装机 一次成型二、特点：

本机是一种新型热封式，多功能全自动袋泡茶饮品包装设备。该机的主要特点是内外袋一次成型，避免了人手与物料的直接接触，提高效率。内袋为过滤棉纸，可自动带线带标签，外袋为复合纸。其0大的好处在于：贴标和外袋均可采用光电定位，包装容量、内袋、外袋、标签等均可任意调整，可根据用户的不同需要来调整内外袋尺寸，以便达到0理想的包装效果，提高产品外观档次，使产品价值提升。三、包装材料：过滤绵纸、棉线、标签纸、铝箔纸包装速度:30-60袋/分钟标签尺寸:宽：35-55mm长：20-40mm线长: 155mm内袋:宽：50-80mm长：50-80mm外袋:宽：70-100mm长：80-140mm电源: 220V 60Hz\110V 50HZ 3.5KW外型尺寸:(L×W×H)900×610×1500mm整机重量: 500Kg

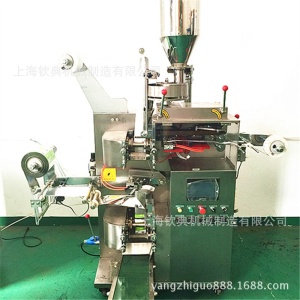

QD-18-I I Teabag Inner and outer bag Packing Machine

Functional Features :

The machine is a latest heat sealing packing machine which has automatic multi-functions. The main feature of this machine is one-time packing for the inner and outer bag, avoiding hands directly contacting with stuff and improving the efficiency. The inner bag is made of filterable cotton paper which can be automatically packed with toting thread and label. The outer bag is composite paper. The advantage is photoelectric location for the tag and outer bag, adjustment to the need of the content, length of inner bag and outer bag. The dimension of inner and outer bag can be adjusted according to the different requirements from customer to achieve the perfect shape, upgrade the appearance of product and add the value of product.

Application:

Be suitable for the dual bag packing of small grain-like materials, such as tea leaf, coffee, Chinese traditional medicine and healthy tea etc.

Pack materials:

paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic,tea paper,thred,tag

Specification：

Packing Capacity	3-15ml
Packing Speed	35-60 bags/min
Tag Dimension	(L)：20-24mm; (W)：40-55mm
Length of Thread	155mm
Dimension for Inner Bag	(L)：50-100mm; (W)：50-80mm
Dimension for Outer Bag	(L)：80-130mm; (W)：70-110mm
Power	200V /50Hz / 3.7KW
Outline Dimension	(L×W×H)1200×900×1900mm
Machine Weight	500Kg

钦典售后服务：

1．我方负责上门安装调试及操作人员的培训； 2．培训项目：A机械使用标准 B维修与保养； 3．以上设备按机械使用标准操作免费保修一年（因本身配件质量问题我方负责免费维修；人为损坏由客户负责所有费用，我方帮助维修）； 4．保修期过后我方提供终生有偿维修及免费技术咨询； 5．我方应在收到甲方维修机器通知起24小时内上门维修，排除故障，保证机器正常工：

耗材：墨轮，包装膜，字粒

易损件：加热管，刀片 ，固态 ，感温线，皮带 附带工具箱一个配送

可适用包装材料 OPP/PE,PET/VM,PET/PE,OPP/CPP等复合热封材料。

运输方式：上海客户直接货车送货，其他省市都是专线货运速配，免费送货到公司，出口业务到指定港口
